Product Details:
|
| Model NO.: | 005 | Tread: | 2240mm |
|---|---|---|---|
| Grade: | Heavy Duty | Types Of Suspension Systems: | Leaf Spring Suspension/Air Suspension |
| Shape: | Flatbed | Axle Number: | 4 Axles |
| Tire Number: | 12 Tyres, Triangle /Double Coin Brand | Self-dumping: | Not Self-dumping |
| ABS Anti-lock Braking System: | ABS Anti-lock Braking System | Material: | Steel |
| Condition: | New | Axles: | BPW/Fuwa Brand |
| Brake System: | Wabco Braking Valve | Transport Package: | In Nude, By Bulk Ship/Roro Ship |
| Specification: | 13000x2500-3000x1650mm | Trademark: | Liangshan |
| Origin: | China | HS Code: | 87163990 |
| Supply Ability: | 100 PCS Per Month | After-sales Service: | One Years |
| Warranty: | One Years | Type: | Semi-Trailer |
| Load Capacity: | 50T | Certification: | ISO9001, CCC, ISO/TS16949 |
| Wheel Base: | 8000-9000mm | Samples: | US$ 5800/Piece 1 Piece(Min.Order) | Request S |
| Customization: | Available | Customized Request |

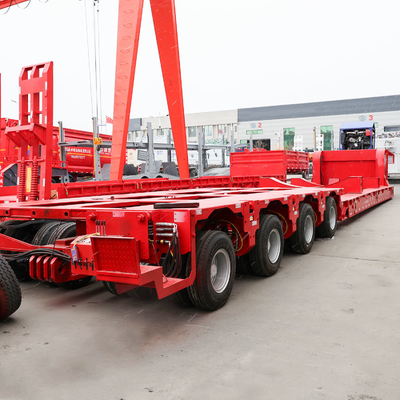

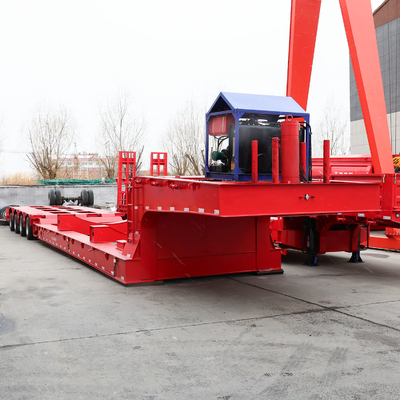

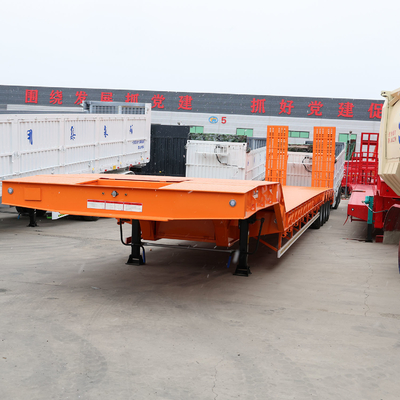

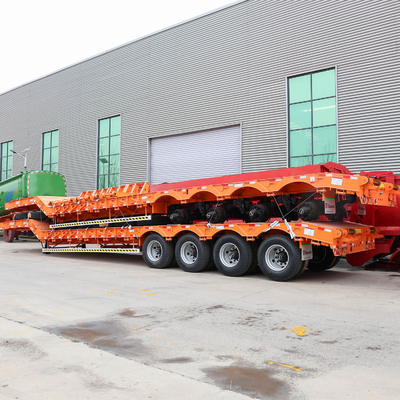

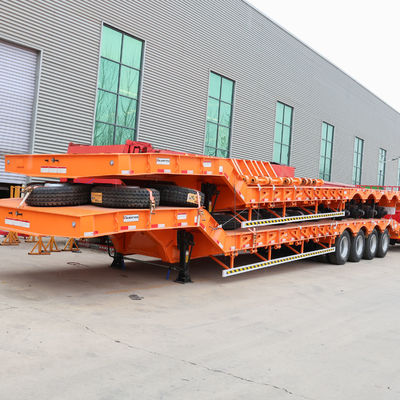

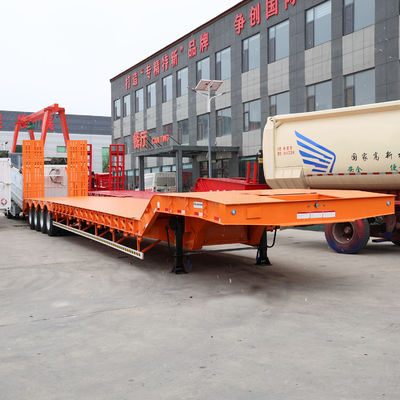

Low Bed Semi Trailer, as known as low bed trailer, lowbed trailer, lowboy trailerOur lowbed trailer choose Q345B carbon high-tensile steel material. We adoptworld famous brand of parts, like JOST, WABCO braking valve etc.
| 4 line 8 axles LOWBED SEMI TRAILER | |
| Model Number | WHLDM-1015008 |
| Outside Dimensions | 13500x2500x1500 (mm) (LxWxH) (Other Dimension Optional) |
| Rated Load | 90-120T |
| Tare Weight | 9900 kg |
| Usage | For heavy duty machine, as transformer, crane, excavator transportation. |
| Wheel Base | 8310+13101310 (mm) |
| Axle Brand | 13t X FUWA Brand |
| No. Of the Axles | 8 |
| Tyre Specifications | 10.00R20 |
| No. Of the Tyres | 32 pcs , Triangle brand |
| Pieces of leaf-spring | 10pcs *90 *16mm |
| Suspension | Heavy Duty Leaf Spring |
| Front/Rear Overhang | 1950 mm |
| Floor | 3mm management plate |
| Tool Box | 1 box of standard tools |
| Spare tire carrier | 2 sets |
| Main Beam Material | Q345B/ST52-3 manganese plates, automatic submerged arc, |
| Main-beam Height 500mm, | |
| Lower flange: 20mm | |
| Upper flange: 20mm | |
| Mid Web: 12mm | |
| Brake Air Chamber | Four double and two single chamber |
| The traction pin | 2' & 3.5' inter-changeable |
| Pin Height | According to the height of the tractor saddle. |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Brake System | Dual Lines Braking System With Automatic Air Chambers |
| Color and Logo | Depends on the buyer's requirement. |
| Place of Origin | Liangshan, China |
Liangshan Xinrun Trading Co., Ltd. is an integrated enterprise of industry and trade, established in 2023, located in Liangshan County, Jining City, Shandong Province. The company is mainly engaged in the import and export of trailer accessories such as trailers, semi-trailers, dump trailers, axles, chemical equipment, and other goods, automobile sales, retail of automobile parts, second-hand car brokerage, mechanical equipment sales, and metal material sales; Selling construction machinery and retail hardware products; Special equipment sales; Wholesale of hardware products; Motor vehicle repair and maintenance; Tire sales; Sales of pharmaceutical specific equipment. The company values professionalism, integrity, and trustworthiness as its core values. Looking forward to cooperating with you!
Production Process
Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
